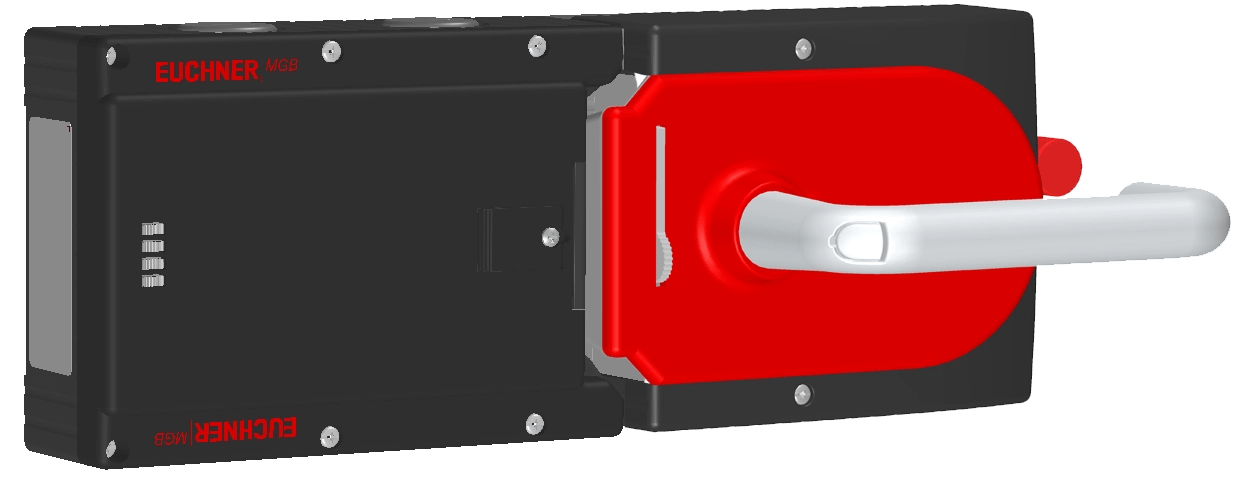

Euchner 105780 MGB-L0HE-ARA-R

Name: Euchner 105780 MGB-L0HE-ARA-R
Brand: EUCHNER
SKU: Euchner 105780
Price: 62606.63 try

Fiyat : ₺62.606,63(KDV Dahil)

₺8.328,77 `den başlayan taksitlerle

Artır Azalt

Handle modules MGB-H-AA1A1-R-100464 (Order no. 100464)

Installation orientation	Door hinge DIN right
Storage temperature	-25 ... 70 °C
Degree of protection	IP65
Ambient temperature	-20 ... 55 °C
Material
Housing	Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Product version number

V3.0.0

Installation orientation	any
Storage temperature	-30 ... 70 °C
Mechanical life	1 x 10⁶
Ambient temperature	-30 ... 55 °C
Material
Housing	Die-cast zinc/stainless steel, powder-coated

Product version number

V2.0.0

Occupancy diagram

Connection cross section
(rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1	0.25 ... 0.75 mm²
(rigid/flexible) with cable end sleeve according to DIN 46 228/1	0.25 ... 1.5 mm²
(rigid/flexible)	0.13 ... 1.5 mm²
Rated insulation voltage U_i	30 V
Rated impulse voltage U_imp	1.5 kV
Discrepancy time
between FO1A and FO1B	max. 10 ms
Utilization category
DC-13	24V 200mA
Risk time according to EN 60947-5-3	max. 350 ms
Risk time according to EN 60947-5-3, extension for each additional device	max. 5 ms
Safety class	III
Transponder coding	Unicode
Degree of contamination (external, according to EN 60947-1)	3
	Monitoring outputs OD, OT, OL, OI
Output type	Semiconductor outputs, p-switching, short circuit-proof
Output voltage	UA-2V ... UA V DC
Output current	max. 50 mA
	Safety outputs FO1A, FO1B
Output type	Semiconductor outputs, p-switching, short circuit-proof
Output voltage
U_FO1A /U_FO1B LOW	0 ... 1 V DC
U_FO1A /U_FO1B HIGH	UB-2V ... UB V DC
Output current
per safety output FO1A / FO1B	1 ... 200 mA
Test pulse duration	max. 1 ms
Test pulse interval	min. 100 ms
	Power supply U_A
Operating voltage DC
U_A	24 V DC -15% ... +10%
Current consumption
I_UA	max. 10 mA
	Power supply U_B
Operating voltage DC
U_B	24 V DC -15% ... +10%
Current consumption
I_UB	max. 80 mA

Connection type	Cable entries M20x1.5
Installation orientation	any
Switching frequency	0.25 Hz
Storage temperature	-25 ... 70 °C
Mechanical life
in case of use as door stop, and 1 Joule impact energy	0.1 x 10⁶
	1 x 10⁶
Degree of protection	IP65
Ambient temperature
at U_B = 24 V DC	-20 ... 55 °C
Material
Housing	Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel
