HELUKABEL 800653 HELUKAT PROFInet A CAT.5e SF/UTP PVC STATIC green 2 x 2 x AWG 22 /1

HELUKABEL 800653 HELUKAT PROFInet A CAT.5e SF/UTP PVC STATIC green 2 x 2 x AWG 22 /1

800653

Item description

HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC green 2 x 2 x AWG 22 /1

Cross-sec. mm² (approx.)

0.32

Conductor Ø mm (approx.)

0.64

Core Ø mm (approx.)

1.5

Outer Ø mm (approx.)

6.3 - 6.7

Cu factor per km

32.0

Weight kg/km (approx.)

67.0

Copper base in EUR / 100 kg

150

CPR class

Eca

Metres per Packaging Unit

100, 500, 1000

Cut-to-length service available

yes

EAN / GTIN

4060892314308

Customs tariff number

85444991















Industrial Ethernet cable / Cat. 5e acc. to ISO/IEC 11801, DIN EN 50173, IEC 61156-5, PROFInet Guideline, UL-Std. 444 (CMG), CSA-Std. C22.2 No. 214 - CMG, UL-Std. 13 (PLTC), UL-Std. 758 (AWM) Style 21694
Temperature range	fixed installation -40°C to +80°C during installation -20°C to +60°C UL (CMG) to +75°C UL (AWM) to +60°C
Peak operating voltage	125 V (not for high power current installation purposes)
Test voltage core/core	2000 V
Conductor resistance at 20°C	max. 57.5 Ohm/km
Loop resistance at 20°C	max. 115.0 Ohm/km
Insulation resistance	min. 5.0 GOhm x km
Mutual capacitance core/core	at 800 Hz, approx. 48 pF/m
Rel. Velocity of Propagation	approx. 62%
Characteristic impedance	at 1 to 100 MHz, 100 Ohm ± 15 Ohm
Caloric load	approx. 0.91 MJ/m
Minimum bending radius	during installation 10x Outer-Ø fixed installation 5x Outer-Ø

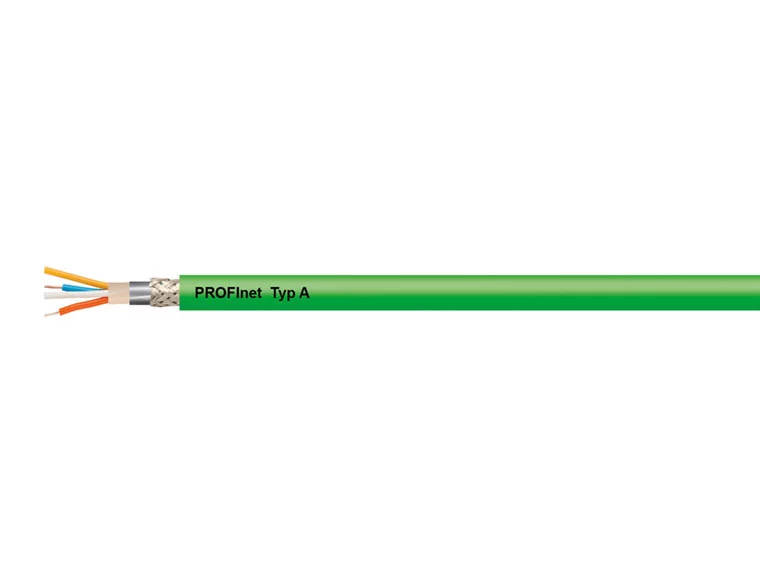

Cable Structure





• • Copper conductor bare, AWG sizes
• • Core insulation: PE
• • Core identification: white, yellow, blue, orange
• • Cores twisted into a star quad with optimal lay lengths
• • Foil wrapping
• • Inner sheath: PVC
• • 1. Screen: plastic-coated aluminium foil (St)
  • 2. Screen: braided screen of tinned copper wires
• • Outer sheath: PVC
• • Sheath colour: green
• • Length marking: in metres





Properties





• • resistant to: oil, UV radiation, weathering effects, microbes
• • highly flame-retardant





Tests





• • flame-retardant acc. to CSA FT4
• • bundle fire test acc. to DIN VDE 0482-332-3 / DIN EN 60332-3 / IEC 60332-3
• • CPR class: Eca
• • certifications and approvals:
  • EAC





Notes





• • Conductor sizes are based on the AWG measurement system, metric conductor sizes (mm²) are approximated and are for reference only
• • UL Voltage Rating: 600 V





Application





• • HELUKAT® PROFInet A CAT.5e SF/UTP PVC STATIC for fixed installation in industrial networks, rugged. It guarantees excellent transmission characteristics and may be used even under the harshest conditions. The cable listed here corresponds to PROFInet Type A and is designed for normal fixed installation in industrial environments.
