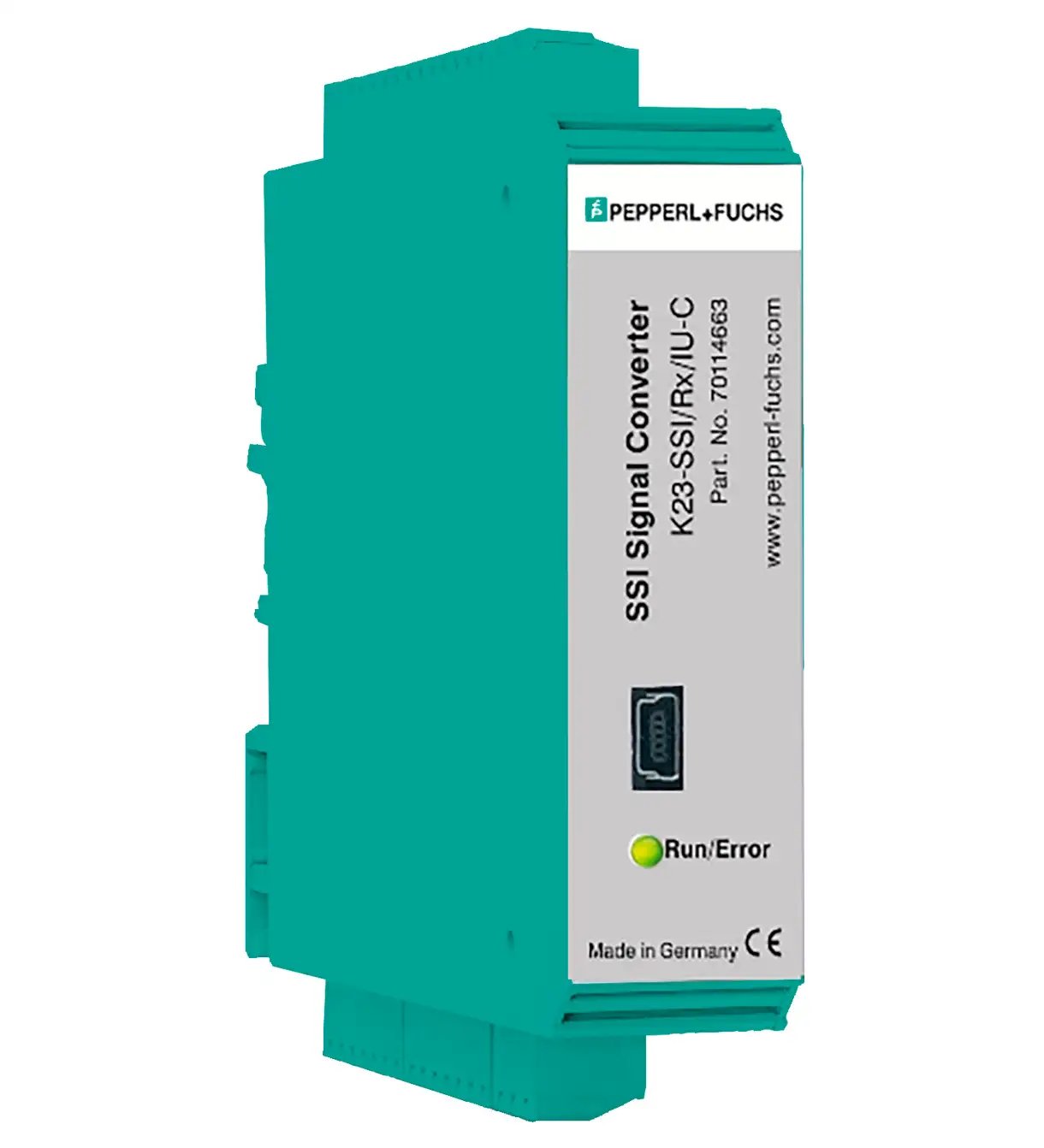

Pepperl+Fuchs K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

Pepperl+Fuchs K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

Pepperl+Fuchs K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

Pepperl+Fuchs K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

Pepperl+Fuchs K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

Fiyat : ₺37.181,00(KDV Dahil)

₺4.946,31 `den başlayan taksitlerle

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Artır Azalt

(0)

K23-SSI/Rx/IU-C | SSI / Analog Signal Converter

SSI / Incremental / Start-Stop Encoder 16-bit Analog Output (Voltage or Current) USB & RS232/RS485 Interface Extremely Short Conversion Times User-defined Non-linear Characteristic Curve Auxiliary Voltage Output 5VDC / 24VDC 6 Control Inputs & 6 Control Outputs IP20 Protection

Ürün Açıklaması

K23-SSI/Rx/IU-C, endüstriyel uygulamalarda SSI telegramları veya enkoder sinyallerini analog çıkış veya seri RS232/RS485 formatına dönüştüren kompakt ve çok işlevli bir sinyal dönüştürücüdür. Cihaz, 35 mm DIN rayına monte edilebilen kompakt bir muhafazada gelir ve USB veya seri arayüz ile yapılandırılabilir.

Teknik Özellikler

Özellik	Değer
Operating Voltage	18–30 V DC
Operating Current	≈ 50 mA (Unladen)
Supply Encoder	5 VDC / 24 VDC, max. 250 mA
Analog Output	16-bit, Voltage: -10 ... 10 V, Current: 0/4 ... 20 mA
Output Control	6 PNP outputs, 5–30 V, max 200 mA, response time < 1 ms
Interfaces	USB Mini B, RS232, RS485, SSI, Start/Stop
Input Frequency	Incremental: RS422 max 1 MHz, HTL diff max 500 kHz, TTL/HTL max 250 kHz
Display / Configuration	USB or RS interfaces for readout and configuration
Response Time	< 1 ms
Degree of Protection	IP20
Mounting	35 mm DIN rail acc. EN 60715:2001
Material	Plastic housing
Dimensions (W x H x D)	23 x 102 x 102 mm
Mass	≈ 100 g
Ambient Temperature	-20 … 60 °C, Storage: -25 … 75 °C

Önemli Bilgiler

Multifunction device for incremental, SSI absolute, and start/stop encoders
User-definable characteristic curves with 24 interpolation points
Extremely short conversion times with high-resolution 16-bit analog output
Multiple connection options with six configurable control inputs and outputs
Compact design for DIN rail mounting, IP20 protection

Product Documentation K23-SSI/Rx/IU-C

Manuals	Language	File Type	File Size	Download
Manual K23-SSI/Rx/IU-C	en	PDF	3 MB

Datasheet	Language	File Type	File Size	Download
Datasheet	en	PDF	447 KB
