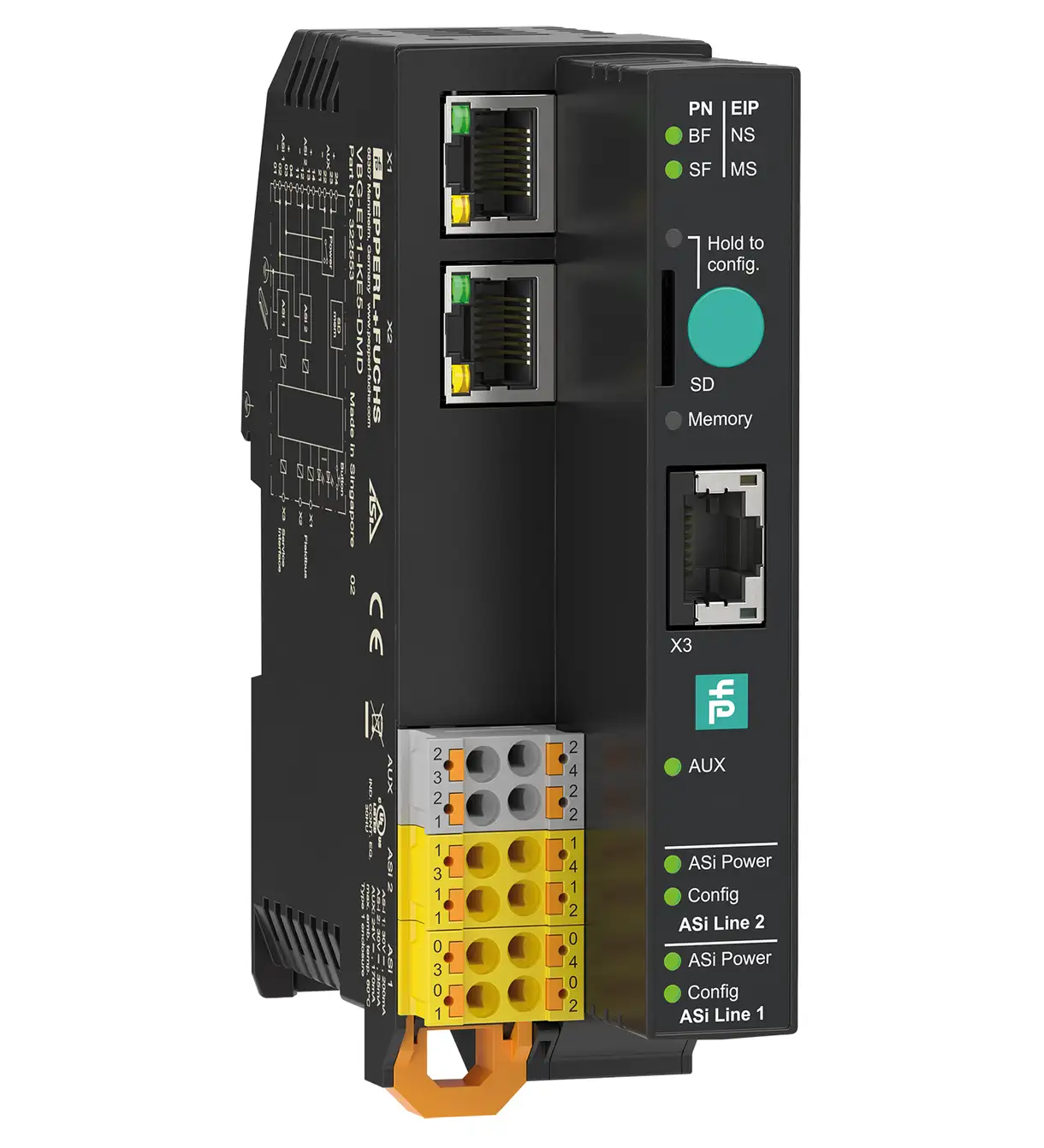

Pepperl+Fuchs VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

Pepperl+Fuchs VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

Pepperl+Fuchs VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

Pepperl+Fuchs VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

Pepperl+Fuchs VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

Fiyat : ₺37.181,00(KDV Dahil)

₺4.946,31 `den başlayan taksitlerle

Telefonla Sipariş

Favorilere Ekle

İstek Listeme Ekle

Fiyat Düşünce Haber Ver

Gelince Haber Ver

Artır Azalt

(0)

VBG-EP1-KE5-DMD | AS-Interface PROFINET / EtherNet/IP Gateway (2 Networks)

AS-Interface Specification 3.0 2 AS-Interface Networks PROFINET / EtherNet/IP Compatible Web-Based Configuration IIoT Ready (REST API) Mobile Device Commissioning IP20 Protection DIN Rail Mounting

Ürün Açıklaması

VBG-EP1-KE5-DMD, 2 AS-Interface ağını PROFINET ve EtherNet/IP protokollerine bağlayan kompakt gateway’tir. AS-i ağlarının üst seviye PROFINET veya EtherNet/IP kontrol cihazlarına entegrasyonunu sağlar. Slim tasarımı ve IP20 koruması sayesinde kontrol panoları için uygundur. Tüm ayarlar RJ45 servis arayüzü ve web tarayıcısı üzerinden kolayca yapılabilir. Mikro SD kart ile ayarlar diğer cihazlara hızlıca aktarılabilir.

Teknik Özellikler

Özellik	Değer
AS-Interface Specification	V3.0
Networks Supported	2 AS-Interface networks
Web Configuration	Yes, via RJ45 service interface
IIoT Compatibility	REST API
Supply Voltage	AS-Interface: 18–31.6 V DC, AUX: 20–30 V DC
Rated Current	AS-Interface Segment 1 ≤ 220 mA, Segment 2 ≤ 60 mA, AUX ≤ 170 mA
Interfaces	Fieldbus: 2x RJ45 (PROFINET IO, EtherNet/IP DLR), Service: 1x RJ45, SD card slot
Transfer Rate	10/100 MBit/s (Automatic baud detection)
Diagnostics	Extended via diagnostics interface, integrated EFD
Degree of Protection	IP20
Ambient Temperature	-25 … 60 °C
Storage Temperature	-40 … 85 °C
Cold Start	-40 °C
Relative Humidity	≤ 95 % non-condensing
Altitude	≤ 5000 m
Mechanical Dimensions	Height: 125 mm, Width: 38 mm, Length: 99 mm
Material	PA 66-FR
Mass	185 g
Mounting	DIN rail

Önemli Bilgiler

2 AS-Interface ağını aynı anda PROFINET ve EtherNet/IP’ye bağlar
Web tabanlı konfigürasyon ve mobil cihazlarla devreye alma
IIoT uyumlu, REST API destekli
Mikro SD kart ile ayar transferi
Kompakt IP20 korumalı gövde, DIN ray montajı

Product Documentation VBG-EP1-KE5-DMD

Manuals	Language	File Type	File Size	Download
Manual VBG-EP1-KE5-D*, Firmware version 2.3	en	PDF	17 MB
Manual VBG-EP1-KE5-D*, Firmware version 2.8	en	PDF	19 MB
Manual VBG-EP1-KE5-D*, Firmware version: 2.16	en	PDF	17 MB
Manual VBG-EP1-KE5-D*, Firmware version: 2.20	en	PDF	19 MB

Brief guides	Language	File Type	File Size	Download
EtherNet/IP: Changeover from ASi gateways type K20 to KE5	en	PDF	2 MB
PROFINET: Changeover from ASi gateways type K20 to KE5	en	PDF	959 KB

Datasheet	Language	File Type	File Size	Download
Datasheet	en	PDF	1 MB
