| Boyutlar / Dimensions | Genişlik / Width | 45 mm |
| | Yükseklik / Height | 130 mm |
| | Derinlik / Depth | 119 mm |
| Genel / General | Destek / Support | Telefon veya yerinde (ücretli) / Phone or on-site (paid) |
| | Uygulama Notu / Application Note | Yalnızca endüstriyel kullanım / Industrial use only |
| | Muhafaza Malzemesi / Housing Material | Takviyeli polikarbonat fiber / Reinforced polycarbonate fiber |
| | Montaj Tipi / Mounting | DIN rayı / DIN rail |

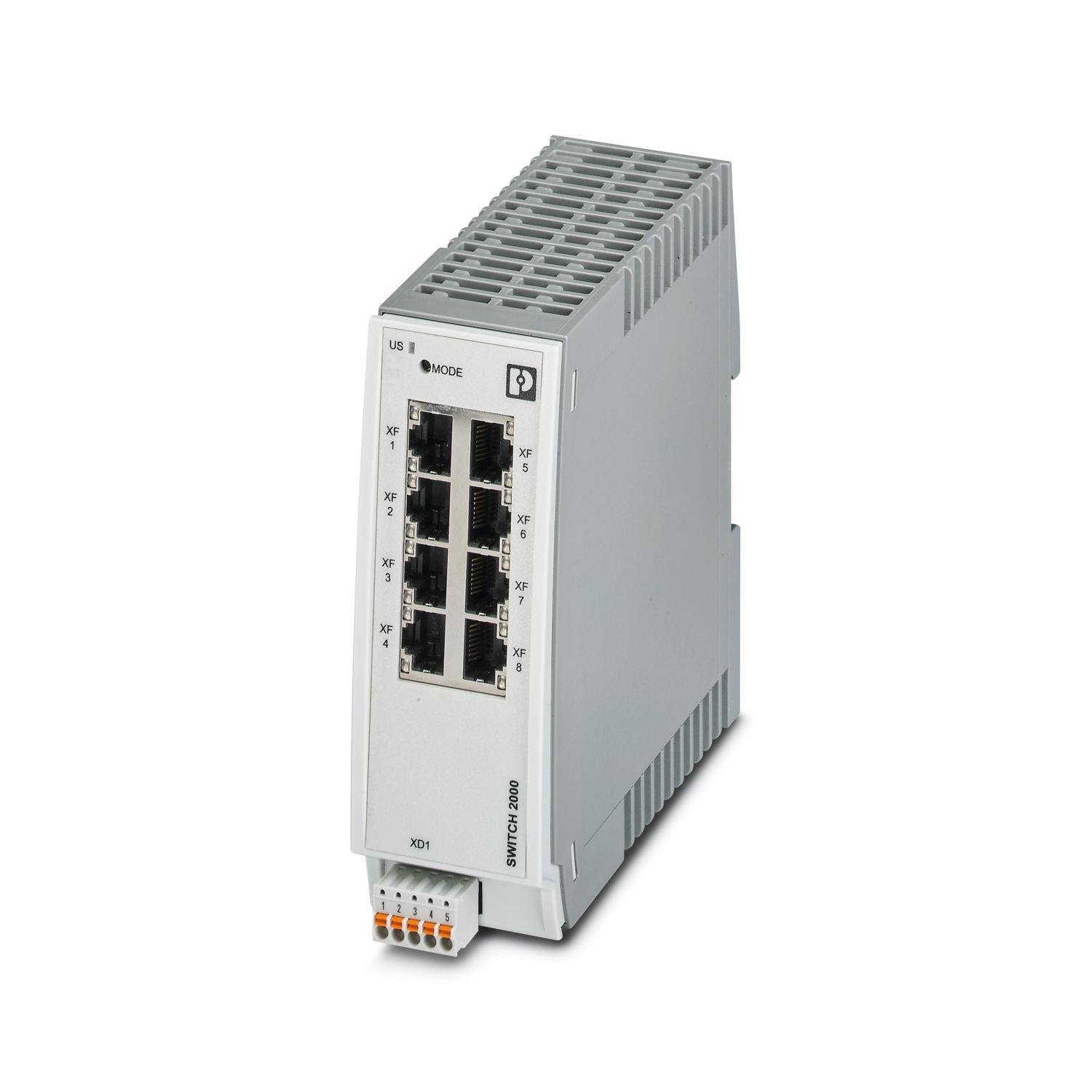

| | Ürün Tipi / Product Type | Anahtar / Switch |
| | Ürün Serisi / Product Line | Managed Switch 2000 |
| | Tasarım / Design | Kitap tipi / Book-type |
| Ethernet | Arabirim Adeti / Interface Count | 8 |
| | Bağlantı / Connection | RJ45, Auto-negotiation & Auto-crossing |
| | Hız / Speed | 10/100 Mbit/s |
| | İletim Ortamı / Medium | Bakır / Copper |
| | Maks. Segment Uzunluğu | 100 m |
| | Sinyal LED’leri / Signal LEDs | Veri alışı, link durumu / Data receive, link status |
| Performans / Performance | MTTF (25 °C, %21) | 507.8 yıl |
| | MTTF (40 °C, %34.25) | 246.55 yıl |
| | MTTF (55 °C, %100) | 56.66 yıl |
| | Sinyal Gecikmesi / Latency | ≥ 6.5 µs (Store-and-Forward) |
| Fonksiyonlar / Functions | Temel / Basic | Store & forward switching, IEEE 802.3 compliant |
| | Teşhis / Diagnostics | RMON History, LLDP, SNMP-Traps, N:1 Port Mirroring, ACD, SysLog, CRC-Surveillance |
| | PROFINET | Conformance-Class A |
| | Filtreleme / Filtering | QoS (8 classes), CoS, DiffServ/DSCP, Port Prioritization, VLAN (up to 8), IGMP Snooping/Querier v1/v2, Auto-Query-Port, Extended Multicast Filtering |
| | IP Parametreleme | DHCP Client/Server (port based), BootP |
| | Yönetim / Management | Web (HTTP/HTTPS), Role-based (LDAP), SNMPv1/v2/v3, CLI (Telnet, SSH) |
| | Yedekleme / Redundancy | MRP, RSTP |
| | İlave / Additional | MMS & GOOSE (IEC 61850-8-1), Modbus/TCP, SNTP time sync |
| Güvenlik / Security | Sertifikasyon / Certification | IEC 62443-4-1, IEC 62443-4-2 compliant |
| Elektrik / Electrical | Besleme Gerilimi / Supply Voltage | 24 V DC (18…32 V) |
| | Bağlantı / Connection | COMBICON push-in, 0.25–1.5 mm² (AWG 24–16), 9 mm stripping |
| | Akım Tüketimi / Current | Tipik 180 mA (24 V, 25 °C), Maks. 0.35 A (18 V, 60 °C) |
| | Güç Kaybı / Power Loss | Maks. 4.86 W (18 V, 60 °C) |
| | Test Voltajları | 24 V/fonksiyonel toprak 500 V DC 1 dk; Ethernet/diğer 2.25 kV DC 1 dk |
| Çevre / Environmental | Koruma Sınıfı / Protection | IP20 |
| | Çalışma Sıcaklığı | 0 … 60 °C |
| | Depolama / Taşıma Sıcaklığı | –40 … 85 °C |
| | Nem / Humidity | 10 … 95 % (yoğuşmasız / non-condensing) |
| | Darbe / Shock | 30 g (EN 60068-2-27) |
| | Titreşim / Vibration | 2 g (IEC 60068-2-6) |
| | Hava Basıncı | 86 … 108 kPa (≤ 1500 m) |
| | Zararlı Madde Yok / No Coating Disturbers | Evet / Yes |
| Uyumluluk / Compliance | UL | UL 61010-1 Ed.3 / UL 61010-2-201 Ed.1 / CSA eşdeğerleri |
| | EMC | 2014/30/EU, EN 61000-6-2/-4; ESD, RF, EFT, Surge, Conducted immunity |
| Göstergeler / Indicators | LED’ler | US (Power), Ethernet port başına 2 LED (Link/Activity & Speed) |
| Lojistik / Logistics | Ürün No / Product No | 2702324 |
| | Satış Kodu / Sales Code | DNN |
| | Ürün Kodu | DNN121 |
| | GTIN | 4055626128917 |
| | Ambalaj Birimi / Packaging | 1 pc |
| | Ağırlık / Weight | 240 g (net) / 387 g (gross) |
| | Gümrük Tarife No | 85176200 |
| | Menşe Ülke / Country of Origin | DE (Germany) |
